Build Year: 1992

Used For: Pilotage

Hull: Steel

Length: 11.99m

Beam: 4.00m

Draft: 1.26m

Licence:

Certification MCA Cat 3 (20 miles from safe haven)2025

Engine:

The Cummins NT855 Naturally aspirated, driving conventionally through reduction gearboxes. With a MG507 Twin Disc gear box. The Main engine has failed and is currently considered unserviceable and therefore subject to a rebuild if viable or replacement.
There is a genset from Beta Marine 4-kilowatt Kubota engine that supply’s power for on board charger, 240v sockets and a heater for the wheel house.

Hydraulics:

Electronics:

Furuno Radar 1835
Lawrence GPS / Plotter / Sounder
AIS Transponder CBS200-Class B
Garmin Echomap UHD 65cv
Icom IC-M411 VHF (DSC)
Loud Hailer System
JRC Depth Finder FF66
Rudder Indicator

Additional Information:

FOR SALE AND SERIOUS OFFERS CONSIDERED - More photos available on request:

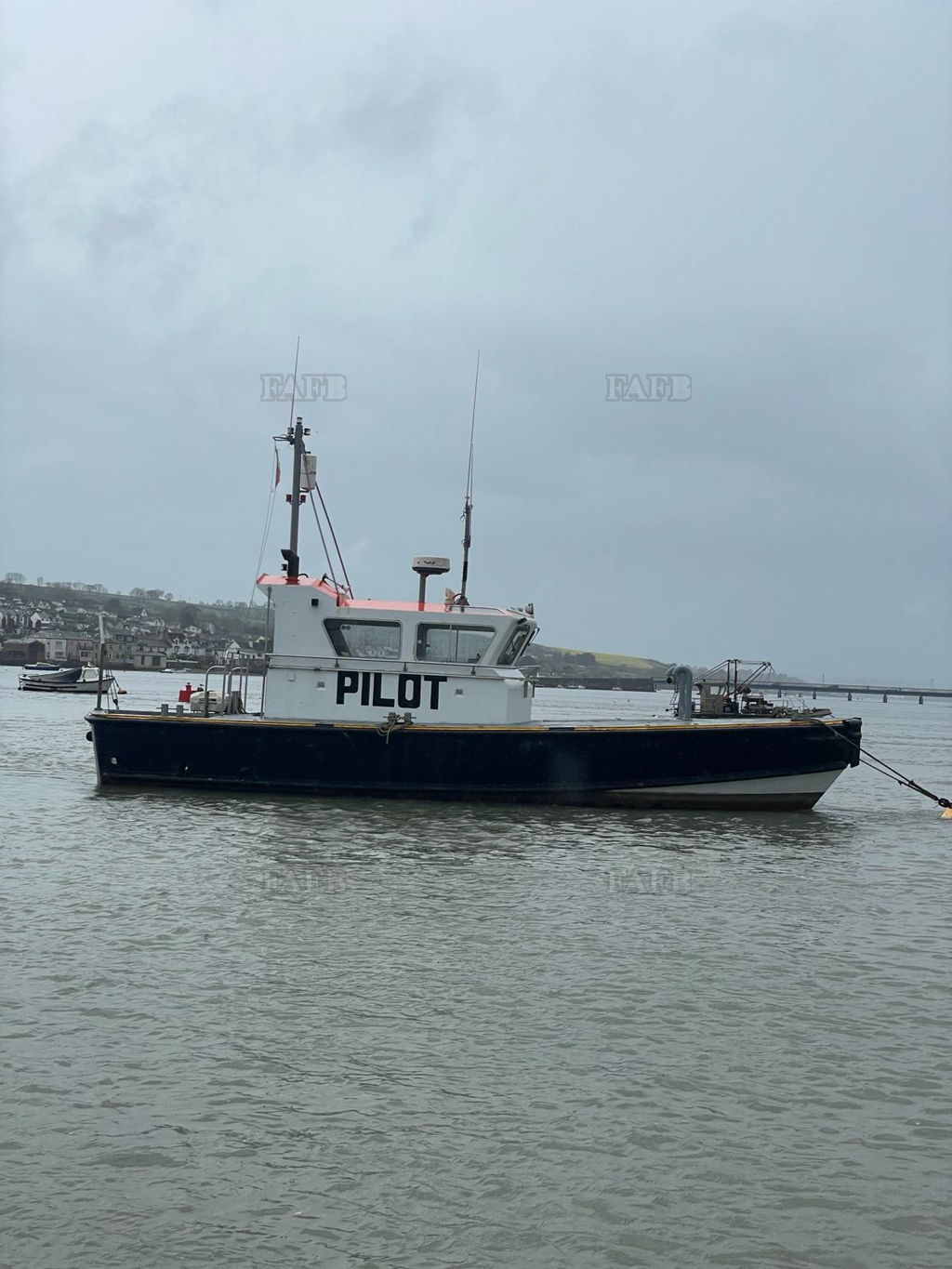

This particular hull is from a one-off design therefore ideally suited to pilotage work; diving/survey work. a proven displacement hull with a dependable power train using the Cummins NT855 Naturally aspirated, with a MG507 Twin Disc gear box. for possibly the most arduous of marine operations. The robustness of construction and typical pilot vessel features such as the fendering and functional MoB transom door and lifting davit, and has a hydraulic bow thruster make her ideally suited to many commercial roles. The vessel also has very good pushing capability due to its design. Currently MCA Coded to Cat. 3, she has just been released from service due to an engine issue and will therefore be sold as seen with the engine removed from the vessel but the stripped down engine is available if required.

Specifications
Vessel name: Syd Hook
Condition: Good
Vessel type: Pilot Boat
Designer: Camarc Ltd
Builder: Croft Marine
Constructed: 1992
No. of engines: 1
Engine model: Cummins NT855
Engine power: 280
Fuel type: Diesel
Drive type: Shaft drive
Cruising Speed: 6 Knots
Maximum Speed: 8 Knots
Nominal length: 11.74m
Length over all: 11.99m
Length at waterline: 11.00m
Beam: 4.00m
Maximum draft: 1.265m
Hull material: steel
Hull type: Displacement
Hull colour: Black
Displacement: 17.85 Tonnes
Fuel capacity: 1400 Litres
Water capacity: 100 Litres

Accommodation
DESIGN: This vessel was purpose built as a pilot vessel and follows a standard format with central helm position, maximised vision laterally and viewing windows within the wheelhouse superstructure for upward vision when boarding ships. The wheelhouse is placed amidships at deck level to facilitate ease of access for pilots to enter and leave the cabin area.

WHEELHOUSE: The helmsman and crew have a dedicated seating Helm, 1-2 crew, 2-3 pilots, 5 seats in total. A chart table and storage draw and central wooden door opens outwards onto the after deck. The helm console is positioned centrally to maximise peripheral vision and all operational instrumentation can be easily monitored including electronic navigational aids, engine controls and instruments. Passive lighting is provided for night operations and the vessel is fitted with appropriate internal and external lighting including deck illumination. Access to the fuel tanks, steering pumps and valve chest via a hatch in the middle of wheel house deck and access to the engine room and fore peak via a hatch STB side of the in the wheel house.

EXTERNAL: The working deck from aft of the wheel house to the bow is flush to gunwale and provides one level access forward to the boarding area, inboard safety rails are fitted and with Hadrian’s rail tracks. A forward ‘island’ rail is fitted. The aft section is a well deck area with freeing ports accessed from aft of the wheel house Port or STB sides. There is a door within the transom with a fold down ladder which drops down for ‘man-over-board’ recovery and also a lifting davit fitted. A raised central structure serves as access to fuel & water tanks at the rear end of the engine room. The vessel has a signal mast atop the wheelhouse with operational lighting.
Construction
Steel Hull and superstructure based on design by Carmarc Ltd
Equipment
There is a door within the transom with a fold down ladder which drops down for ‘man-over-board’ recovery and also a lifting davit fitted. Anchor & Chain
Hadrian Safety Rail system
Stn/Stl inboard rails and ‘island’ rail forward
Access to wheelhouse roof
Heavy ‘D’ section fendering at gunwale and waterline level
Heavy ‘D’ section fendering horizontally and laterally for pushing




Navigation Equipment
Furuno Radar 1835
Lawrence GPS / Plotter / Sounder
AIS Transponder CBS200-Class B
Garmin Echomap UHD 65cv
Icom IC-M411 VHF (DSC)
Loud Hailer System
JRC Depth Finder FF66
Rudder Indicator

Engine(s)
The Cummins NT855 Naturally aspirated, driving conventionally through reduction gearboxes. With a MG507 Twin Disc gear box. The Main engine has failed and is currently considered unserviceable and therefore subject to a rebuild if viable or replacement.
The engine room has check-a-plate flooring with access to the lower bilge areas, air extraction via large vents. Exhausts have inline silencers and exit through the aft to tank room and up through the wheel house. Watertight ‘dogged’ door lead forward to the fore peak which holds a hydraulic bow thruster and the tank room aft with further access to the steering compartment beyond. There is provision within the deck head for engine extraction. There is a genset from Beta Marine 4-kilowatt Kubota engine that supply’s power for on board charger, 240v sockets and a heater for the wheel house.
Capacities:
Fuel: 1400 litres in integral centreline tanks
Water: 100 litres
Note: This vessel will be sold with the main engine removed but available with the purchase.

Electrics
Onboard systems are 24v
230v charger.

Safety Equipment
Certification MCA Cat 3 (20 miles from safe haven)
