Description:

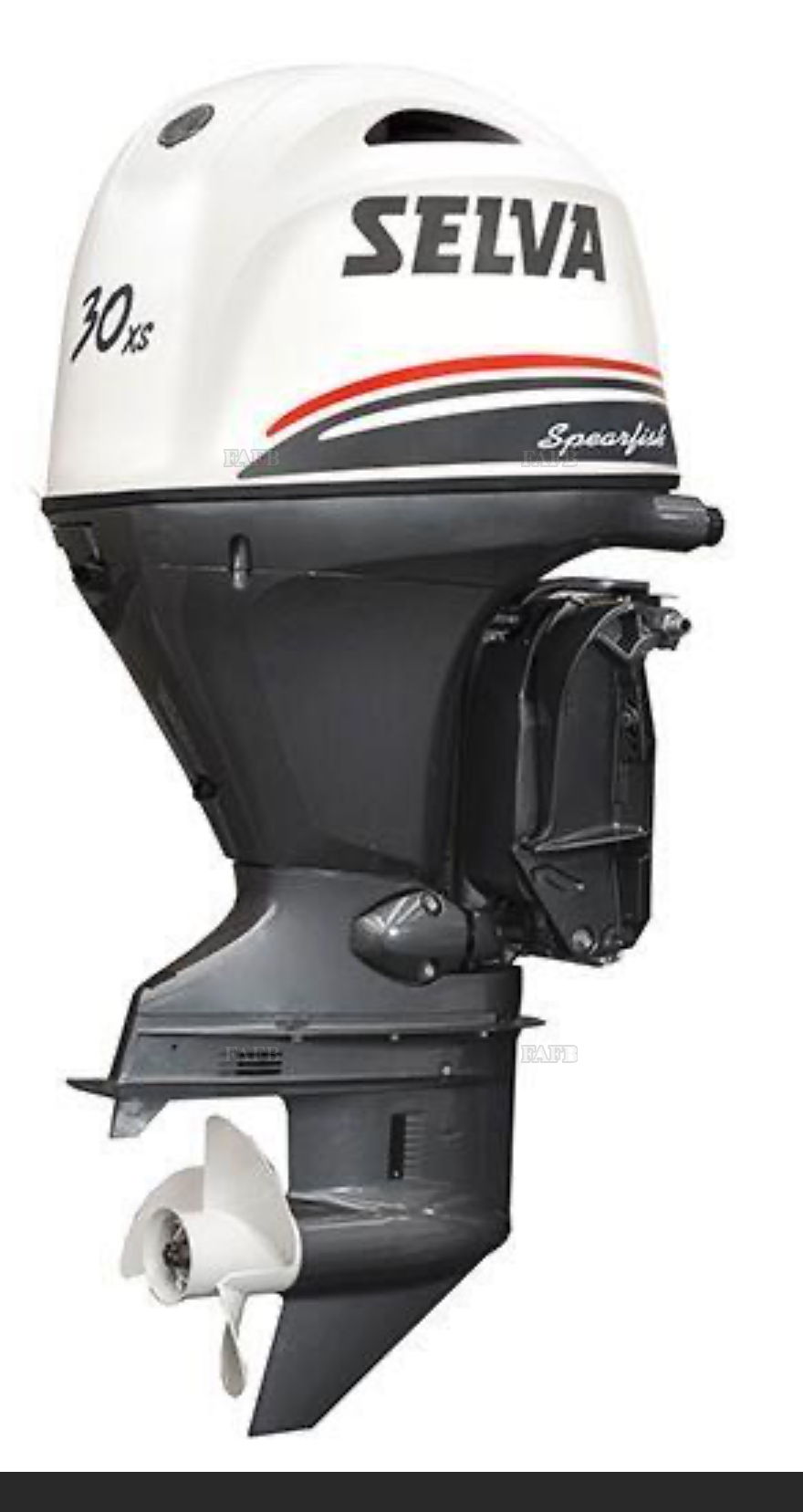

SPEARFISH 30XS E.F.I. XL (25”) with side mount controls, prop and digital gauge.
Pair Available or can be sold separately.

Innovative engine that, thanks to the generous displacement of 1832 cc and the 16 valves single camshaft architecture, combined with the cutting-edge solutions introduced for the intake (single throttle body) and exhaust systems, guarantees particularly brilliant performance. The adoption of the latest technologies in the materials used and in the combustion handling systems, guarantees the perfect combination of efficiency and lightness.
Technical Characteristics
Power Hp 30xs EFI
Power Kw 22
Max. R.P.M. 4000
Motor type 4 stroke DOHC 16V
Displacement c.c. 1832
Bore x Stroke (mm) 79 x 81.4
N° Cylinders 4
Induction Electonic Fuel Injection
Starting Automatic
Fuel Petrol (for specifications see the user manual)
Lubrication Wet Sump
Ignition T.C.I./Computer
Ignition timing Electronic
Starting Electric
Alternator Standard 12V / 300W
Cooling Water cooled with pump-forced circulation
Exhaust Under-water through propeller
Number of valves Intake: 8 Exhaust: 8
Throat Diameter Intake: 29,1 Exhaust: 24,1
Trim adjustment Power Trim/Tilt
Direction reversal Mechanical A-F-R
Transmission Ratio 13/30
Standard propeller type 3-bladed with built-in spring drive
Weight basic version (kg.) 162
